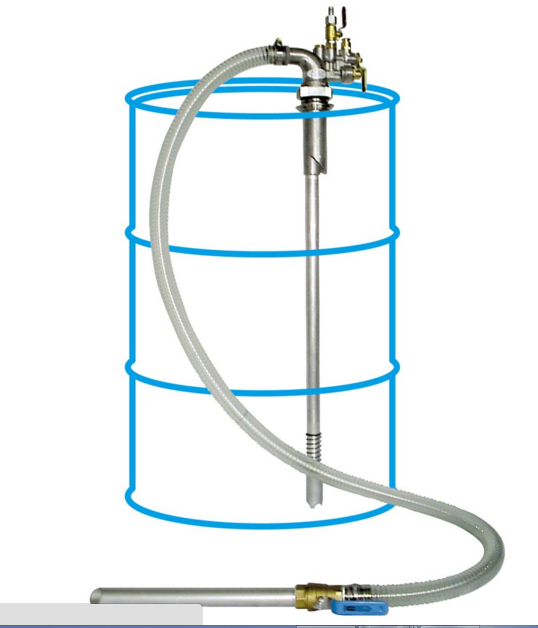

APDX-25EX series

APDX-25EX series

0 VNĐ
Số lượng
Đặt mua
MIỄN PHÍ GIAO HÀNG
ĐƠN HÀNG TỪ 5.000.000Đ TRỞ LÊN
GIAO HÀNG THEO THOẢ THUẬN
ĐẢM BẢO CHẤT LƯỢNG
HÀNG NHẬP KHẨU CHÍNH HÃNG, CÓ NGUỒN GỐC RÕ RÀNG
Đầy đủ quyền lợi
Áp dụng Chương trình Khách Hàng thân thiết như mua ở Cửa hàng
  • Thông tin chi tiết
    1. Compressed air of 0.1~1 MPa is let in.
    2. Regulator is set to decompress air to 0.05 MPa.
    3. Decompressed air enters into the drum can.
    4. Air pushes the surface of the liquids inside of the can.
    5. The pushed liquid enters into the suction pipe.
    6. Liquid enters into the hose and goes out through the nozzle.

    Delivery Mechanism

    Specifications Table

    Types APDX-25EX APDX-25GEX APDX-25ASEX
    Function Delivery / Suction Delivery / Suction Delivery / Suction
    Acceptable General oil Diesel Gasoline, Kerosine Solvent
    Partsmaterials Body AL AL AL
    Packing NBR NBR Teflon, Fluoro-rubber
    Hose PVC (D32x2m) Oil resistant rubber (D25x2m) SUS304 (D25x2m)
    Maxdeliveryrate (L/min) 1cP 70 / 100 50 / 70 50 / 70
    500cP 50 / 45 30 / 25 35 / 25
    1000cP 30 / 20 20 / 10 20 / 10
    Discharge Head Max 2m
    Weight (kg) 4.3 5.7 5.3
    Option Drum can
